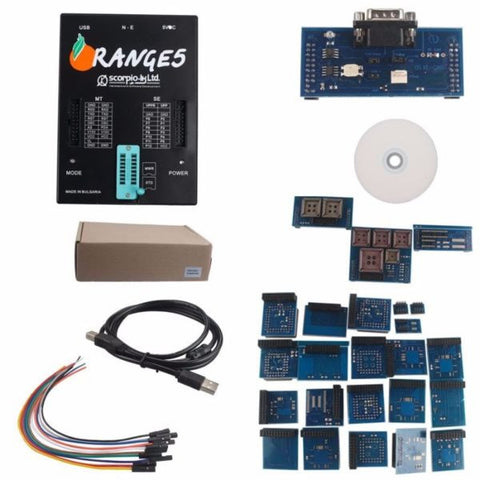

orange5 V1.34 Professional Programming Device With Full Packet Hardware

R 6,000.00

* USB power supply (USB2.0/3.0)

* Universal easy to plug panel ZIF16 for EEPROM

* Control of contacts in the sockets

* Omega MTRK

* Protection against overcurrent

* Overload voltage protection

* Two types of power supply: Standart (USB) and enhanced (USB + external power supply)

* Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers

* High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)

* Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment

* Capability of functional emulation of class CDC USB devices

* Built-in 32-bit virtual machine

* Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)

* Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1]

- Installation and Work with Orange-5 under Windows XP, Windows 7 and Windows 8.1

CnCterm - Terminal program for work with COM ports.

Orange5 Feature:

Supports any COM ports, incuding virtual ones from 1 to 20

Works with text (ASCII) and HEX mode

Creating a list of commands that allows editing and fast sending

Fine-tuning the exchange rate

Saving files including command and port settings.

Saving incoming data in binary files

File transfer via serial port.

Delay settings for bytes and blocks

"Echo" mode

Delay settings between incoming data

Managment of DTR, RTS chains, visualising DSR, CTS, CD, RI

Program doesn't need to be installed
